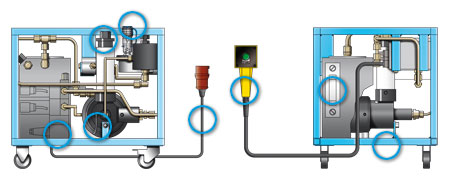

The SCHAAF HDE 3000-BK Power Pack is a high-capacity, compact electrohydraulic high-pressure unit, specially designed for industrial use. Consequently, it is a reliable high-pressure generator:

• Rugged, compact and durable design
• Small dimensions (445 x 360 x 410 mm)
• Low weight (60 kg)
• Immediately ready for use, fully assembled and oil filled
• All components sealed leakproof
• No pressure loss even at 3000 bar
• Manufactured in high-quality materials
• Hardened, replaceable valve seats
• Pressure relief valve with internal tank return line
• Permanently installed in mobile housing
• Low-maintenance operation
• Up to 8 connections possible for 3000 bar
• Different supply voltages possible

The SCHAAF HDE 3000-BK is ideally suited for:

• The use of bolt tensioners, hydraulic nuts, ExpaTen Bolts and EcoRolls
• Tightening and loosening of oil press fits (e.g., gearwheels, flywheels, coupling hubs, roller bearings, hydraulic couplings and overload protection devices)

All HDE 3000-BK are checked for material quality, dimensional accuracy, correct functioning and load-resistance. During order execution, they are subject to continuous quality assurance measures and are supplied together with detailed technical documentation.

HDE 3000-BK are, of course, oil filled and ready for immediate use.

SCHAAF HDE 3000-BK are user-friendly, reliable, and manufactured in accordance with the highest level of technical know-how. Our highly-motivated staff would be pleased to train your personnel, in situ or at our works, in the general handling and operation of high-pressure equipment.
